When we set out to create our ultimate, no-compromise singletrack rig, we put everything we loved about trail riding into the Fluid FS 2.
The Fluid FS 2's progressive design provides a unique combination of fit, handling, and suspension design to elevate your trail experience. The double-butted X6 aluminum frame's smooth welded, size-scaled tubing maintains ride quality across all frame sizes and features internal cable routing for clean lines and a quiet ride.
With models designed around both 27.5 and 29-inch wheels depending on frame size, the Fluid FS 2 features 130mm of Rockshox Recon RL fork travel, paired to 120mm of RockShox Deluxe Select rear suspension. A SRAM SX Eagle 12 speed drivetrain provides quick, reliable shifts and Shimano M420 disc brakes will bring the fun to a quick halt before you get carried away.
- Alloy Frame w/Internal Cable Routing, Boost Spacing, and 2.6" Tire Clearance
- RockShox Recon RL fork and Rockshox Deluxe Select shock
- SRAM SX Eagle Drivetrain
- Stans Flow D rims and Novatec Boost hubs
- Shimano BR-M420 Hydraulic Disc Brakes
Wider than standard yet narrower than fat, plus-size rims and tires hit the sweet spot in grip, stability, and speed, giving you more confidence on technical terrain. Compared to a standard tire you’ll feel grip in places you wouldn’t expect thanks to a bigger contact patch and greater rollover clearance. More air volume allows lower tire pressures which softens bumps and increases float on sand or snow. Whether you’re a novice or an expert, the benefits of plus-size tires and rims will amplify your mountain biking fun.
A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.
Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.
Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.

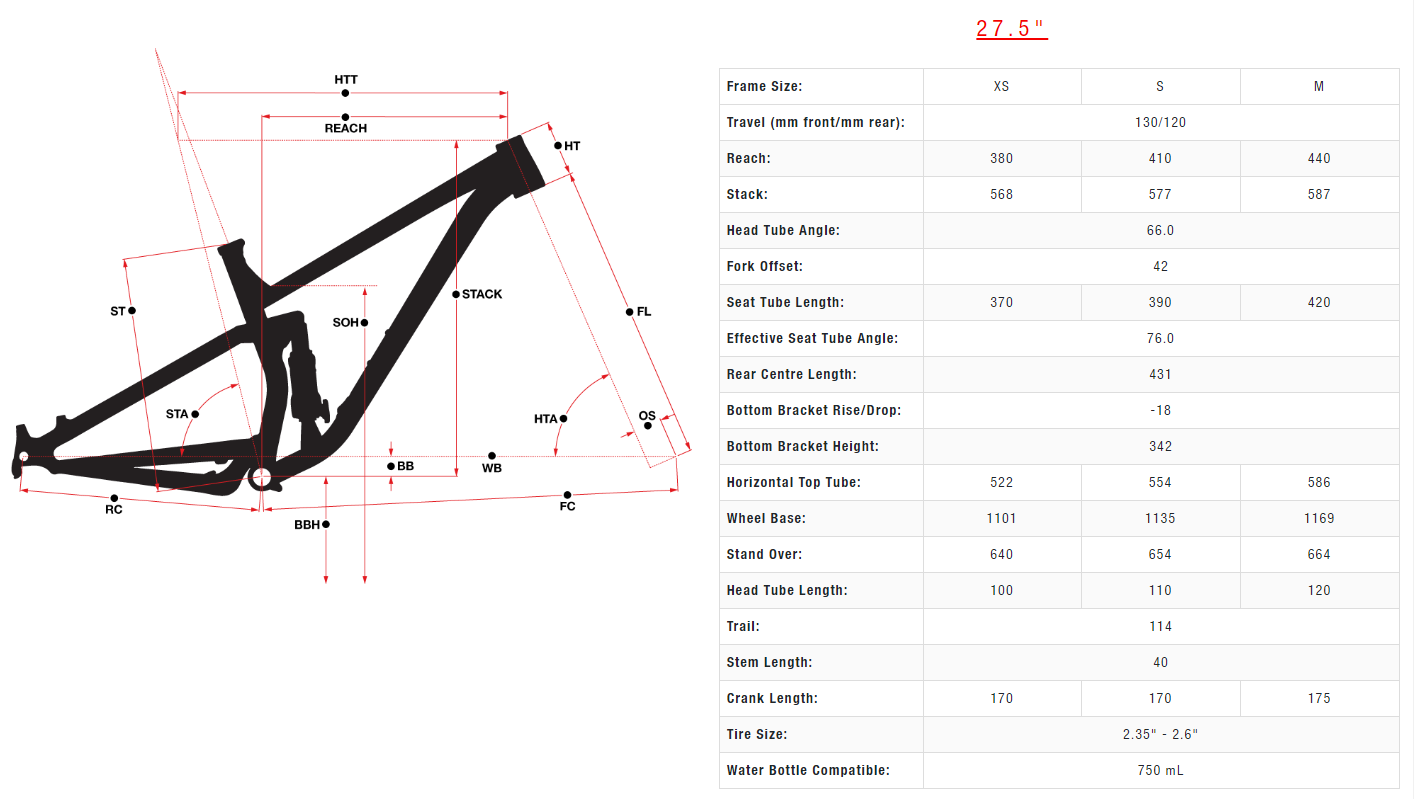

Sizes X-Small – Medium: 27.5-inch
Sizes Medium – X-Large: 29-inch
|Frame||6061, 120mm Travel|
|Fork||RockShox Recon RL, 130mm Travel|
|Headset||Sealed Cartridge Bearing|
|Rear Shock||Rockshox Deluxe Select, 120mm Travel|
Front: 15 x 110mm Boost thru-axle
Rear: 12 x 148mm Boost thru-axle
|Rims/Wheels||Stans Flow D, 32H|
|Spokes||Stainless, 14g, Black|
Front: Maxxis Minion DHF 2.6" 3C/EXO/TR
Rear: Maxxis Forekaster 2.6" 3C/EXO/TR
|Crankset||SRAM SX Eagle DUB|
|Bottom Bracket||SRAM DUB threaded|
|Chain||SRAM SX Eagle|
|Rear Derailleur||SRAM SX Eagle|
|Cassette/Rear Cogs||SRAM PG-1210 Eagle, 11-50T|
|Shifters||SRAM SX Eagle 12 speed|
|Handlebars||TranzX 6061 DB, 780mm|
|Tape/Grips||VP lock on|
|Stem||6061 Alloy, 50mm, 35mm bore|
|Brakes||Shimano BR-M420, Hydraulic, 180mm / 160mm rear rotors|
|Pedals||VP Flat Nylon|
|Seat Post||X-Fusion Manic dropper|
* Subject to change without notice.
|Black/Charcoal / X-Small / 27.5-inch||058817437885||0650220713||FLU22767294L|
|Black/Charcoal / Small / 27.5-inch||058817437892||0650220714||FLU21834387L|
|Black/Charcoal / Medium / 27.5-inch||058817437991||0650220715||FLU21195892L|
|Black/Charcoal / Medium / 29-inch||058817438004||0650220915||FLU21492822L|
|Black/Charcoal / Large / 29-inch||058817438028||0650220916||FLU2161858L|
|Black/Charcoal / X-Large / 29-inch||058817425189||0650220917||FLU22463728L|
|Green/Purple / X-Small / 27.5-inch||058817437274||0650210713||FLU23339595E|
|Green/Purple / Small / 27.5-inch||058817437397||0650210714||00641944|
|Green/Purple / Medium / 27.5-inch||058817437496||0650210715||FLU22982864E|
|Green/Purple / Medium / 29-inch||058817437540||0650210915||FLU22711394E|
|Green/Purple / Large / 29-inch||058817437588||0650210916||FLU2269605E|
|Green/Purple / X-Large / 29-inch||058817437632||0650210917||FLU23362817E|
